KDE

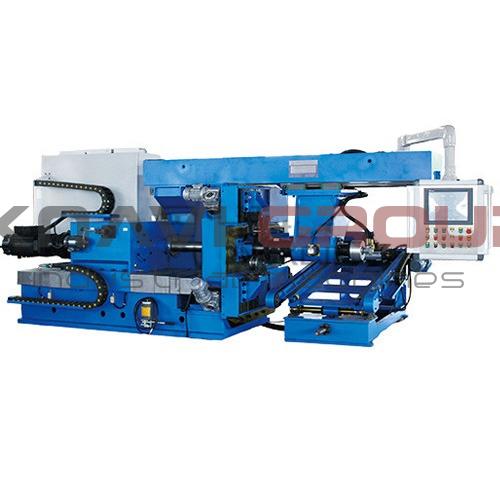

CNC hot-coiling spring machine HCM-65K

Серия: SJX

Control method CNC

Quantity of controlled axis 4pcs

Direction of coiling Right + Left

Wire diameter 20mm — 65mm

Spring diameter 100mm — 480mm

Spring lenght 100mm — 1200mm

Цена и условия

18 424 522 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Indication and control

Control method CNC

Quantity of controlled axis 4pcs

Type of spring Compression

Processing parameters

Direction of coiling Right + Left

Wire diameter 20mm — 65mm

Spring diameter 100mm — 480mm

Spring lenght 100mm — 1200mm

Max. spring weight: 250kg

Engines and power supply

Spindle motor power 37kW / 1pcs

Spindle speeds range 65rpm

Pitch axis motor 1pcs x 7.5kW

Pump motor power 5.5kW

Mandrel center bracket telescopic motor power 4pcs x 0.55kW

Cooling pump motor power 1.5kW

Motor power of feeding roller 1.8pcs

Motor power of springcart 2.2kW

Total motor power 55kW

Voltage 380V / 50Hz

Other

Air pressure 0.6MPa

Working pressure 70bar

Tank capacity 150L

Overall dimensions and weight

Weight 11000kg

Overall length 6200mm

Overall width 3000mm

Overall height 2100mm
