Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 5-axis CNC spring coiling machine TK-540
WNJ

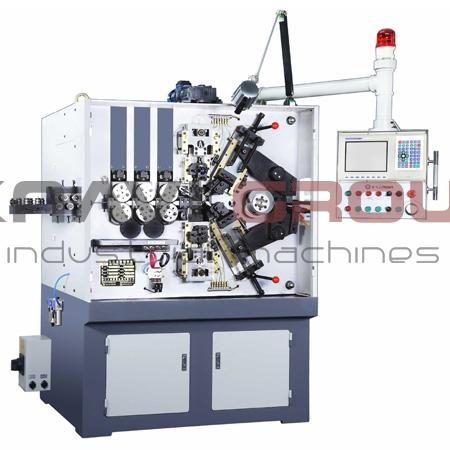

5-axis CNC spring coiling machine TK-540

Серия: TK
Quantity of controlled axis 5pcs
Type of spring Compression
Spring coiling machine computer Windows based
Spring diameter 65mm
Wire diameter 1.5mm — 4mm
Direction of coiling Right + Left

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 5pcs
Type of spring Compression

CNC

Spring coiling machine computer Windows based

Processing parameters

Spring diameter 65mm
Wire diameter 1.5mm — 4mm
Wire feeding speed 77m/min
Direction of coiling Right + Left

Controlled axes

OD control axis 2.7kW
Pitch axis 2kW
Wire feed axis 7kW
Cutting axis 2.7kW / 2.7kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 18kW

Overall dimensions and weight

Weight 2400kg
Overall length 2350mm
Overall width 1600mm
Overall height 2000mm

Периферия

Wire feeders

SLB-1000
SLB-1000
Diameter of feeding tray : 2200mm , Loading weight : 1000kg , Motor power : 2.2kW

Spring length detector

Length detector (WNJ)
Length detector (WNJ)

Spring lenght sorting device

Spring length sorting device (WNJ)
Spring length sorting device (WNJ)

Комплектация

Left-direction coiling knife rest
Right-direction coiling knife rest
Tools box
Количество: 1 pcs
Инструмент и оснастка для навивки
Количество: 1 set
Лампа освещения рабочей зоны
Количество: 1 pcs
