Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 9-axis CNC spring coiling machine TK-15260
WNJ

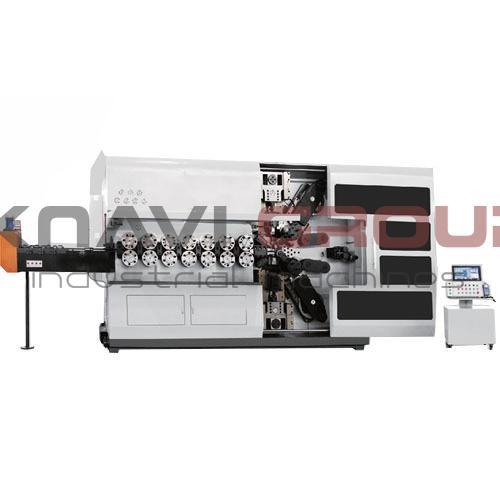

9-axis CNC spring coiling machine TK-15260

Серия: TK
Quantity of controlled axis 9pcs
Type of spring Compression
Spring diameter 260mm
Wire diameter 16mm — 26mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 9pcs
Type of spring Compression

CNC

Spring coiling machine computer Windows based

Processing parameters

Spring diameter 260mm
Wire diameter 16mm — 26mm
Wire feeding speed 60m/min
Direction of coiling Right + Left

Controlled axes

OD control axis 14.1kW / 14.1kW
Arbor moving axis 5kW
Pitch axis 23kW
Wire feed axis 7pcs x 23kW
Cutting axis 80kW / 80kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 430kW

Overall dimensions and weight

Weight 41000kg
Overall length 7300mm
Overall width 4000mm
Overall height 3100mm

Периферия

Wire feeders

SLB-2800
SLB-2800

Комплектация

Left-direction coiling knife rest
Right-direction coiling knife rest
Tools box
Автоматическая смазка направляющих
Инструмент и оснастка для навивки
Количество: 1 set
Лампа освещения рабочей зоны
